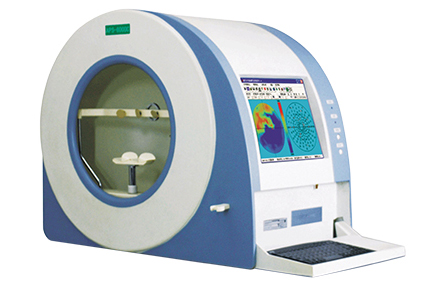

APS6000C Computerized Perimeter

Sales101@optometryinstruments.es

Tel: +86-21-68555555

Whatsapp: +86-21-68555555

APS6000C Computerized Perimeter
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Parameters:
1.Stimulator screen: hemispherical bowl, radius 30cm integrated
2.Stimulus source: light emitting diode, wave length 580~650nm
3.Stimulus size: 2mm
4.Stimulus intensity: 2.5~1000asb
5.Stimulus duration: adjustable 0.2 to 2 seconds
6.Stimulus color: yellow, red
7.Stimulus step: total 27, step 1
8.Patient response time: adoptive to patients, adjustable 0.2 to 2 seconds
9.Minimum inter-stimulus delay: adjustable 0.2 to 2 seconds
10.Background illumination: 4asb
11.Test lens diameter: 35mm
12.Central sign diameter: 3mm
13.Stimulus points: 144(0~60º), 72(0~30º), 72(60~90º), 61(0~10ºred), 144(Blind spot)
14.Chin rest moving range: vertical 70mm, horizontal 90mm
15.Fixation method: automatic monitoring with two options. Available blind spot method, Eye tracking method. In both methods, fixation errors are to be immediately announced by visual and audible warnings. The standard video camera should provide visual of the patient’s eye for additional monitoring
16.Strategies: estimative test, qualitative test, auto threshold, fast threshold, full threshold, esterman test and other popular mode.
17.Test range: default test(0~60º), Yellow spot test(central0~10º), Central 0~30º test, Quadrant test, Peripheral test(60~90º), Blind spot test, Custom test
18.Stimulator unit dimensions: 68*76*50cm
19.Stimulator unit weight: 25kgs
20.Stimulator unit power supply: 220V/50HZ, 110V/60HZ

Software Interface:
Software window Eye-tracking Parameter setup Print option
0~60 degree image 60~90 degree image 0~90 degree image Smoothed image
color image 3D image Database inquiry Report data

Packing:
Two cartons
Gross weight: 73kgs
Computer part: 900*680*840mm
Printer and accessories: 505*450*280mm
