Description
Features:

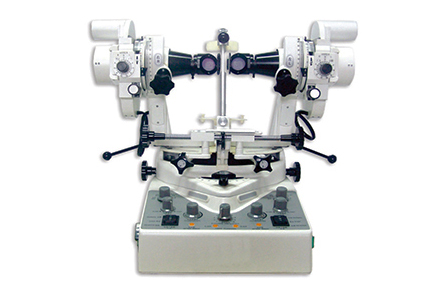

Equipped with the optical, mechanical and electrical parts, YZ23B synoptophore is an advanced diagnostic and remedial instrument to check the strabismus, amblyopia, diplopia, and heterophoria, etc.
1. The equipment could be used to diagnosis and treat the simultaneous viewing, syncretic viewing, solid viewing, and afterimage.
2. With a pair of Haidingers Brush, it can show 20 pairs of pictures in different angles.
3. It is easy to observe through the advanced semi-transparent and semi-reflecting viewfinder.
4. The light source is even lighting LED bulb.
5. New designed pictures are anti-broken and long span
6. Both Manual and automatical coruscation could be selected.
Parameters:
Parameters:
| Magnification | 1.65X |
| Diameter of visual field | ≥56MM |
| Red light wavelength | λ=640NM |
| Left and right tubes around erect axis | Concourse 50°,radiation 40° |
| Left and right tubes around horizontal axis | ±30° |
| Pictures of left and right can be moved up and down according axis | ±10△ |
| Pictures of left and right can be moved up and down around optical axis | ±20° |
| Adjustable range of pupil distance | 45~75MM |
| Darkroom illumination | LED luminophor with symmetry design |
| Adjustable haidingers brush | 50-100 round/minute |
| Coruscation form | Manual or automatical |
| Automatical coruscation frequency | Ten-step,30300 times/minute |
| Range of automatic coruscation(each cycle) | 1/4 on 3/4 off,1/2 on 1/2 off,3/4 on 1/4 off |
| Type of automatic coruscation | The left and right can be turned on or off at the same time The left and right can be turned on or off alternatively One on and the other off One on or off while the other can be turned on or off |
| Packing volume | 0.425M3 |
| Carton quantity | 2 |
| Gross weight | 61KGS |
